Note: The chip of GOKU GM10 V3 GPS is M10050. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols

GOKU GM10 V3 GPS series is here!  Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.

Check out our other  options, as well as the rest of our !

Features

• GPS Module, Three Module Compass
• With electronic compass IC QMC5883L
• 1.0mm spacing between the 6pins patch seat

Specifications

• Brand: FLYWOO
• Model: GM10 PRO V3 GPS w/ Compass

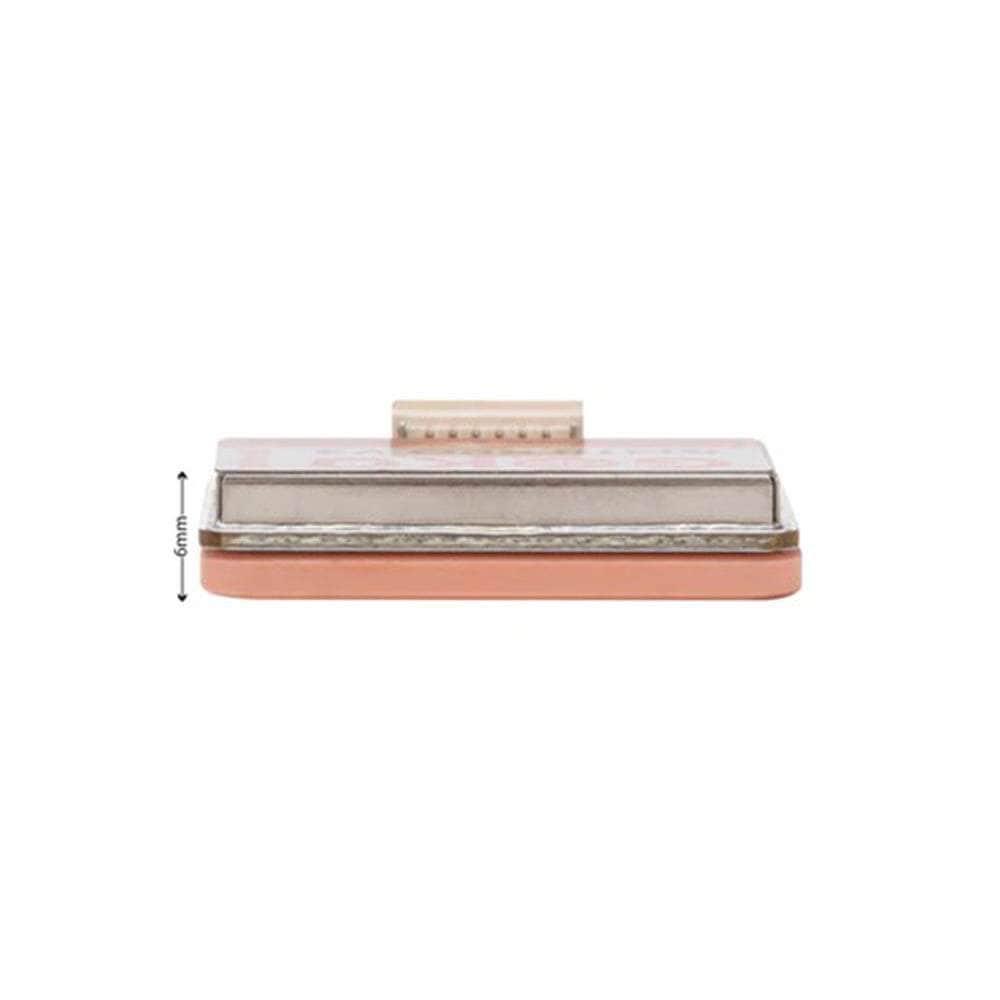

• Dimension: 25x25x6mm
• Weight: 7.3g
• Connector: 1.00mm spacing between the 6pins patch seat
• Chipset: M10050 (Tenth Generation Chip)
• Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
• Default Protocol: GPS, Galileo, BeiDou
• Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
• Channels: 72 Searching Channel
• Tracking: -162dBm
• Reacquisition: -160dBm
• Support Rate: 4800bps to 921600bps, Default 115200bps
• Data Level: TTL or RS-232, Default TTL level
• Data Protocol: BF4.3.X(UBLOX)/BF4.2.X(NMEA)
• Output frequency: 1Hz-10HzDefault 10Hz
• Altitude: 50,000m Max
• Velocity: 500m/s Max
• Acceleration: Less than 4g
• VCC: DC Voltage: 5V
• Operating temp: -40 °C ~ +85°C
• Storage Temp: -40°C ~ +105°C

Includes

• 1x GM10 PRO V3 GPS w/ Compass
• 1x 150mm Cable
• 1x Copper Foil

Wiring Diagram
