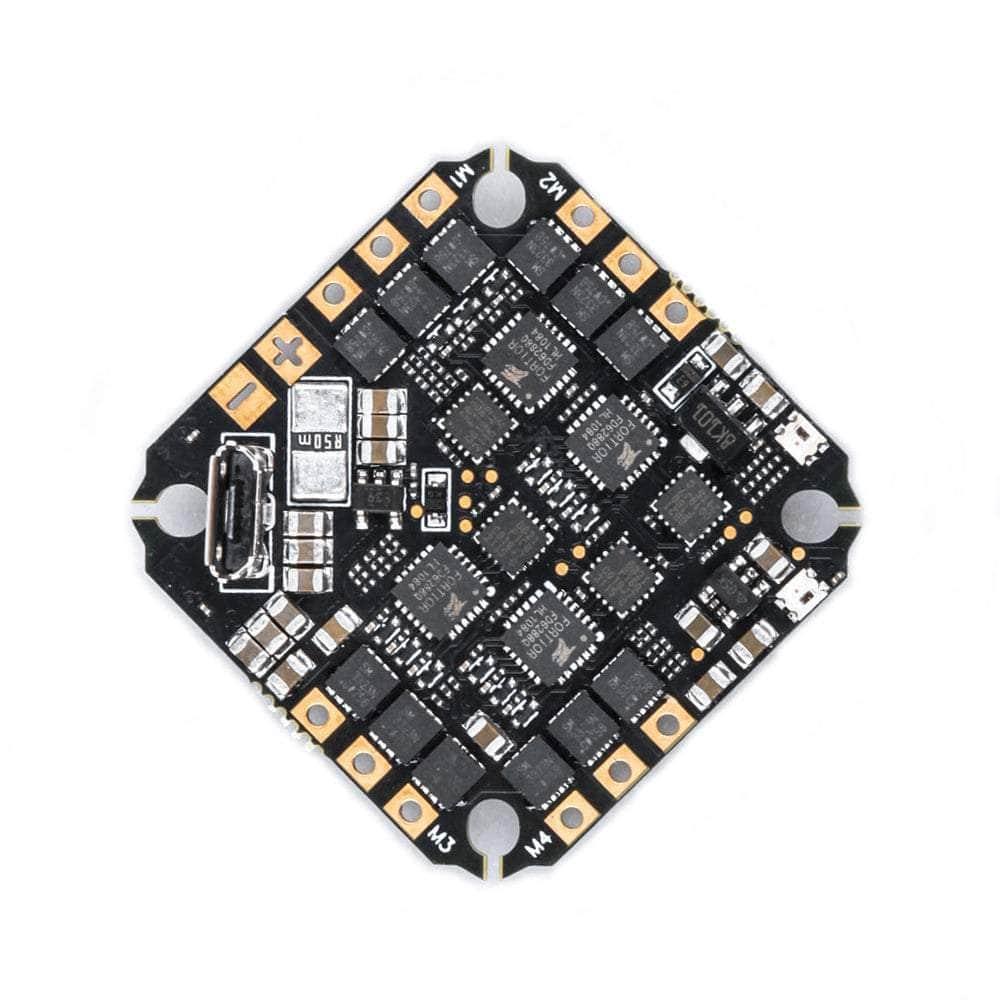

Meet the new Flywoo GOKU F405 2-6S AIO Whoop/Toothpick Flight Controller w/ 40A 8Bit 4in1 ESC. This advanced system is made with the powerful F405 chip, with a integrated 5V BEC, barometer, black box, and WS2812LED, as well as 6 complete hardware serial ports, I2C and other functions. Everything you need for a reliable and efficient flight experience.
Look at our other , as well as the rest of our
Feature
- This AIO come installed with a MPU6000
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
- Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- The GOKU includes a barometer
- Featuring a Black Box
- Current Sensor
Specification
- MCU: STM32F405 BGA 8bit processor
- IMU: MPU6000
- Barometer: BMP280
- Onboard LED: WS2812x4
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Onbord Storage: 8Mbytes for Blackbox logging
- 5V Power Out: 2.0A max
- 3.3V Power Out: 0.5A max
- Dimensions: 33.5x33.5mm
- Mounting Holes: Standard 25.5x25.5mm
- Weight: 8.5g
- Input Voltage: 2-6S Lipo
- Continuous Current: 40A
- Firmware: BLHELI_S
Includes
- Flywoo GOKU F405 2-6S AIO Whoop/Toothpick Flight Controller w/ 40A 8Bit 4in1 ESC
- 1x XT60H-M Power Lead
- 4x Black M2 grommets
- 1x Capacitor
- 1x Sticker
