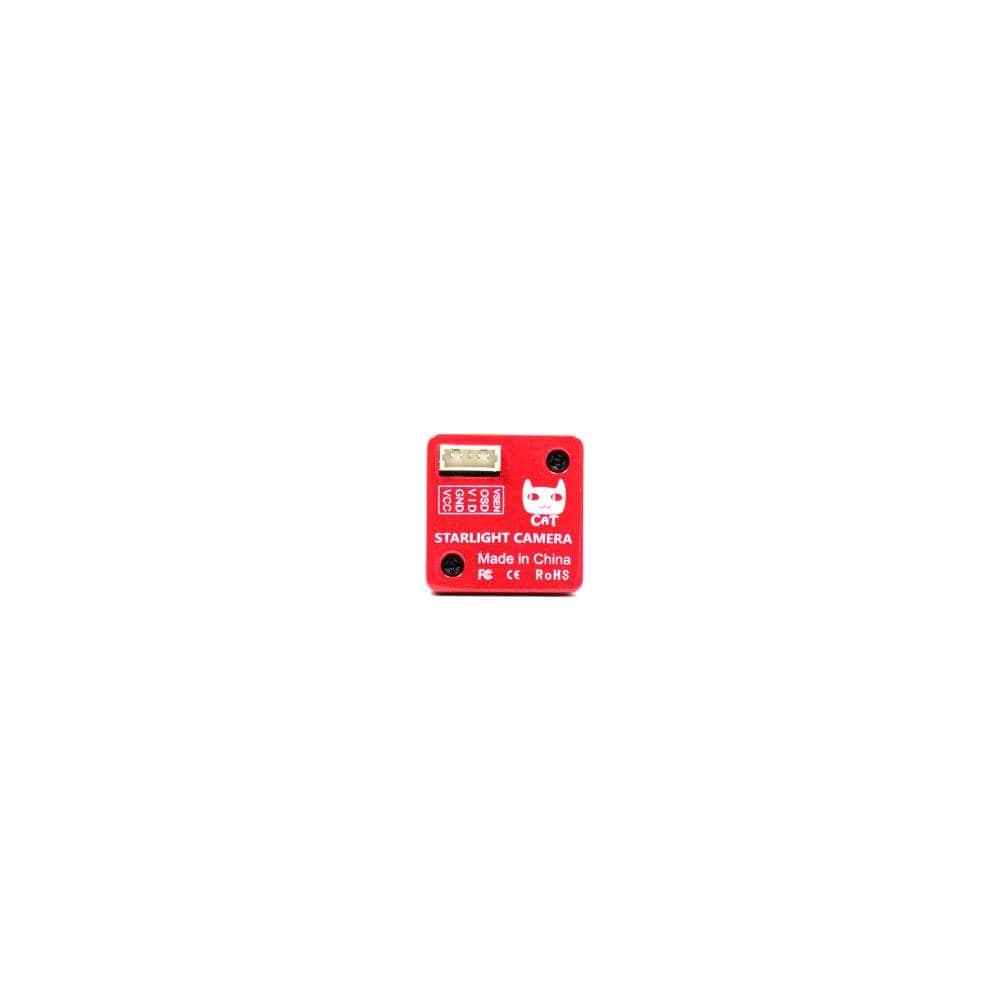

The Foxeer Cat 3 Mini is a professional night vision FPV camera. It features a 1200TVL resolution and 0.00001lux night vision, allowing for clear footage even in the dark. This camera is perfect for nighttime flying. As it offers a large aperture night vision lens, this cam is designed to capture clear images and videos even in dark settings. With PAL/NTSC switchable video system, 4:3/16:9 aspect ratio, and 100dB WDR, you get balanced, low noise, and low latency footage. Enjoy your nighttime FPV flights with Foxeer Cat 3 Mini. - Choose between Black and Red for your preference of color!

Check out our selection of  and our ever-growing selection of

Features

• Less Noise
• Less Latency
• 0.00001LUX Super Starlight
• Exclusive Optimization for LED
• Large Aperture Night Vision
• Support OSD & Menu Remote Control with Foxeer FC

Specifications

• Sensor Type: Sony 1/3" CMOS Sensor
• Scale: 4:3(Default)/16:9 Switchable
• Tv System: PAL(Default)/NTSC Switchable
• Resolution: 1200TVL

• Lens: M12 2.1mm Low Light Lens
• FOV 4:3: FOV-H: 100° FOV-D:125°
• FOV 16:9: 100° FOV-D:115°
• Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
• Flip: Up, Down, Left and Right

• Video Output: CVBS Analog Signal
• Latency: Low to 2ms
• Minimum Illumination: 0.00001Lux
• White Balance: Auto
• DNR: 3DNR
• WDR: 100dB
• DAY/NIGHT: EXT/Auto/Color/B&W
• Flight OSD: Voltage/Cam Title/Time

• Input Voltage: 4.6V~20V
• Power Consumption: 115mA±15%@DC12V,270mA±15%@DC5V
• Language:  ENGLISH // PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / / EAAHNIKA
• Working Temperature: -10°~50°C RH90% MAX
• Working Humidity:  20~80%
• Storage Temperature: -20°~70°C
• Consumption: 95mA±15% @ DC12V

• Dimension: 22 x 22mm; 28 x 22mm(with bracket)
• Weight: 12.2g(Exclude cable)


User Manual

Includes

• 1x Foxeer Cat 3 Mini 1200TVL CMOS 2MP 4:3/16:9 PAL/NTSC LUX Night FPV Camera (2.1mm) - Choose Your Color
• 1x OSD Board
• 1x 2pin OSD Cable
• 12x Screws
• 6x Gasket Ring
• 1x Servo Cable
