The 2.1 Version now has a twist focus design unlike the 2.0 with its original separate focus wheel system.

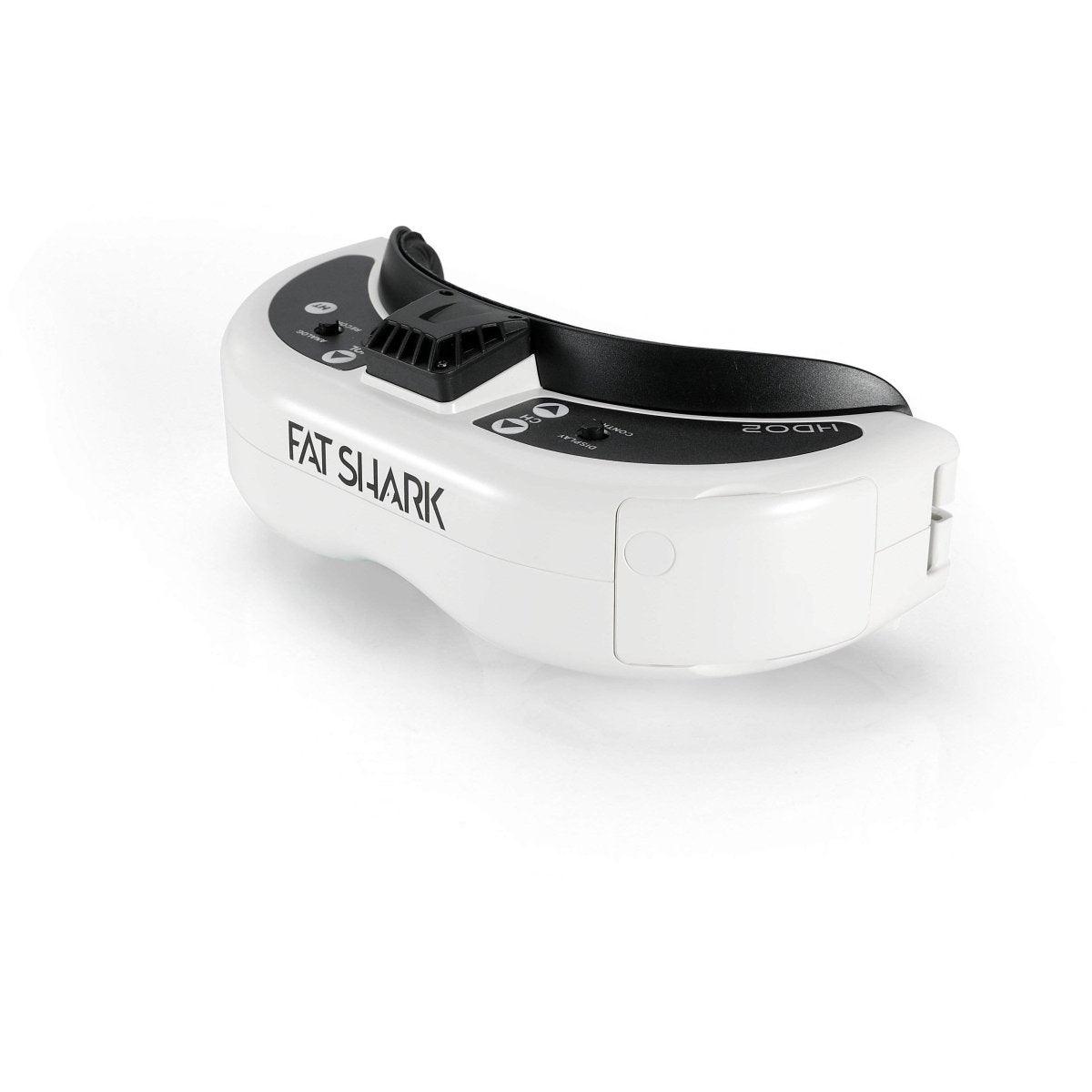

The Dominator HDO2.1 headset launches as the successor to the much-loved Dominator HDO. The HDO2.1 uses big 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO2.1 can be further personalized with adjustable focus, adjustable IPD, adjustable face plate curvature, selectable image ratio, and a configurable power button. The HDO2.1 is the perfect headset for an experienced pilot looking for the best flight experience.

Includes a Fat Shark 32CH 5.8GHz OLED Receiver Module Video Receiver Module and dipole antenna.

Check out all our , and our gear selection!

Features

Goggles

• High Definition Multimedia Interface 1080p Support
• Updated 2.1 IPD and Focus Adjuster buttons
• 59-69mm IPD Range (Adjustable)
• Switchable 16:9 and 4:3 Format
• 1280x960 OLED Display
• Adjustable Face Radius
• Integrated Analog DVR
• 2 Sony OLED Displays
• Modular Receiver Bay
• 46° Diagonal FOV
• Adjustable Focus
• Expansion Port

VRX Module

• Built in spectrum analyzer
• 32 channel selection on A, E, Fat Shark and Race bands
• Integrated OLED screen for channel management
• Clean integration into Fat Shark headsets — no modifications needed!

Specifications

Optics:

• FOV (field of view): 46 degrees diagonal
• IPD (interpupillary distance): 54 to 74 mm (adjustable)
• Focus: +2 to -6 diopters (adjustable)

Display:

• Two Sony 0.5” OLED displays
• Resolution 1280 x 960
• NTCS/PAL auto selecting
• AV Mode 4:3
• AV Mode 16:9
• HDMI Mode 16:9

Audio:

• Stereo

User Controls:

• Channel Selection
• Volume Control
• Mode Selection
• Display Control (Brightness and Contrast)
• DVR Control
• Power Button / Fan Control

Electrical:

• Power Supply: 7 – 13V input voltage (2S – 3S Supply)
• Power Consumption: TBD
• Analog DVR: MicroSD support to 32 GB
• Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
• File playback (native recording, no codec support)
• Upgradeable via SD card

Battery:

• 7.4V, 1.8A 18650 Battery Case (optional))

Interface:

• 3.5mm AV in/out port
• Power input port
• 3.5mm 3p earphone port
• MicroSD
• RF Module Bay
• HT connector 3 pin internal connection
• Power Button

Mechanical:

• Ergonomic molded headset w/ adjustable headband
• Dimensions: 169.2 x 80 x 45.5 mm
• Weight: 206.8 g

Includes

• 1x Fat Shark HDO2.1 Goggles
• 1x Fat Shark 18650 Battery Case
• 1x Zippered Carry Case
• 1x Lens Cleaning Cloth
