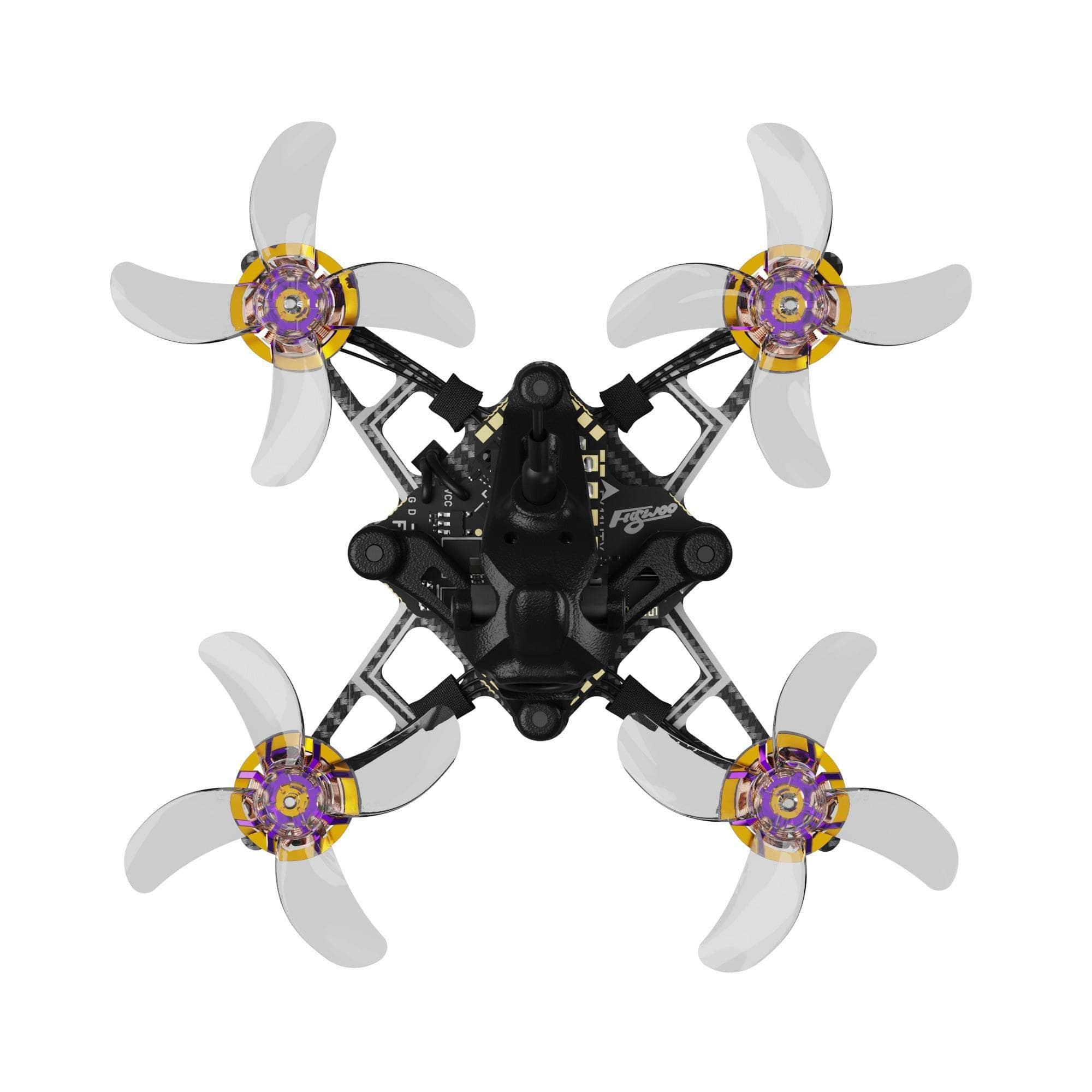

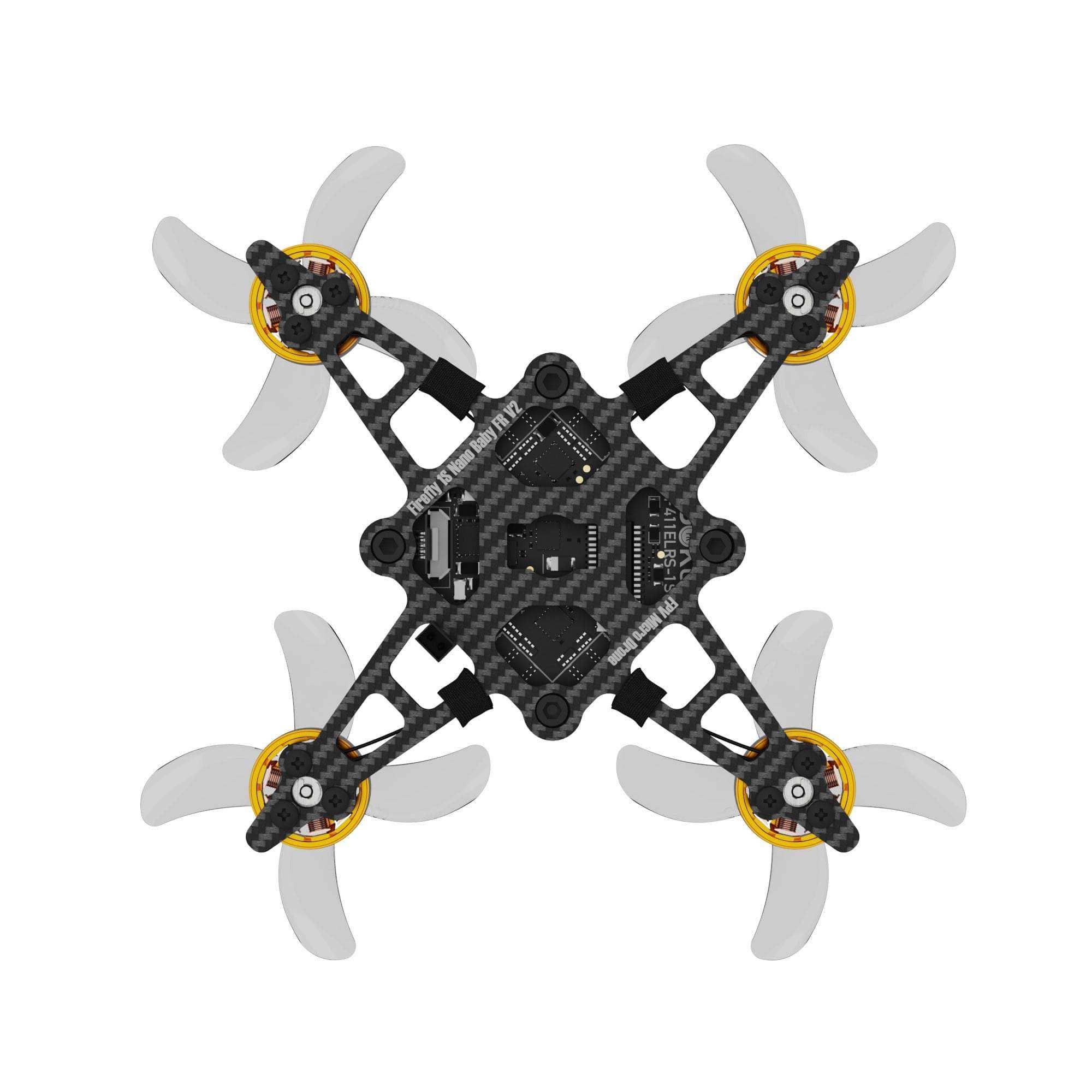

The FR16 Nano Baby V2 is a meticulously crafted microdrone with improved appearance, flight time, and power compared to its predecessor. Power has increased by 30%, with flexible flight, exceptional maneuverability, and higher speeds. A new canopy reinforces camera protection, while a new bottom plate adds sturdiness and crash resistance. The drone is equipped with a special gold-purple edition ROBO 1002 23,500KV motor and GOKU Versatile F411 VTX 1S AIO V2 with 250mW video transmitter. The Flywoo 1S Nano camera V3 delivers clearer and better image quality on this quad.
Check out our other , as well as other great products from !
Features
- Redesigned canopy with enhanced aesthetics and reinforced camera protection.
- The bottom plate is thicker and has extended motor protection corners, resulting in a more stable and durable quadcopter.
- Equipped with ROBO 1002 23,500KV motor and 1609 4-bladed 40mm propellers, delivering a 30% increase in power, reduced noise, and enhanced flight stability.
- Ultra-light GOKU Versatile F411 1S VTX AIO V2 with upgraded circuit board stability and a 250mw video transmitter, enabling an extended flight range.
- A30 plug supports a continuous current of 15A, providing greater power and longer flight times compared to the PH2.0 connector.
- Upgraded Flywoo 1S Nano camera V3 delivers clearer and better image quality.
- New battery compartment design allows for easy replacement of batteries of different models.
Specification
- Motor: ROBO 1002 23500KV
- Electronics: GOKU Versatile F411 VTX 1S 5A AIO V2.0 w/250mW VTX
- Props: 1609 - 4 blade 40mm 1.5mm Shaft
- Camera: Flywoo 1S Nano Camera V3
- Receiver: ExpressLRS 2.4GHz
- Weight: 26g
- Flight Time: Explorer 1S 450mAh HV V2: 4m - : 6m (approximate)
- Speed: 80km/h (approximate)
GOKU Versatile F411 VTX 1S 5A AIO V2.0 w/ 250mw VTX
Flight Controller
- MCU: STM32F411CEU6
- GYRO: ICM42688
- UARTS: 1/2
- Soft serial port1
- I2C: SCL/SDA
- BEC: 5V
- Input Voltage: 1S (<4.35v)
- Firmware: FLYWOOF411_5IN1_AIO
- Mounting: 25x25mm, M2
Onboard 4in1 ESC
- MCU: EFM8BB21
- Power supply: 1S LiPo/LiPo HV Current: 5A
- Firmware: BLHeli_S
- Factory firmware: O_H_5_REV16_8.HEX
- Default protocol: DSHOT 150/300/600
Onboard 5.8g VTX
- Output power: 25mw~250mw switchable
- Frequency: 40CH
- Frequency: 5.8GHz 5 bands 40 channels(include Race band) IRC ready
- Configuration: 9N12P
- Stator Diameter: 10mm
- Stator Length: 2mm
- Shaft Diameter: 1.5mm
- Motor Dimension(Dia.xLen): Φ13.5x7.75mm
- Weight(g): 2.5(5cm wire)
- Idle current(5)@5V(A): 1.5
- No.of Cells(Lipo): 1S
- Max Continuous Power(W)3S: 52
- Internal Resistance: 75mΩ
- Max Current(3S): 14A
- Max Efficiency Current: (2-4A)>84%
Flywoo 1S Nano Camera V3
- Model: Flywoo 1S Nano Camera V3
- Image Sensor: 1/3" CMOS Sensor
- Horizontal Resolution: 1200 TVL
- TV System: NTSC and PAL(switchable)
- MENU: Support
- IMAGE: 4:3
- Synchronization: Internal
- Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
- S/N Ratio: >52dB (AGC OFF)
- Video Output: CVBS
- Lens: 1.8mm/F2.5
- Min. illumination: 0.001Lux
- Auto Gain Control: YES
- BLC: YES
- WDR: Global WDR
- DNR: 3D DNR
- Dimensions: 14x14mm
- Wide Power Input: DC 3.7-18V
- Work Temperature: -20°C~+60C
- Work Humidity: 20%~80%
- Weight: 2.1g
Includes
- 1x Flywoo BNF Firefly FR16 Nano Baby Analog V2.0 1.6" 1S Micro Quad - ELRS 2.4 GHz
- 4x 1609 - 4 40mm 1.5mm shaft
- 2x TPU Battery Mount
- 1x Hardware Screw Set

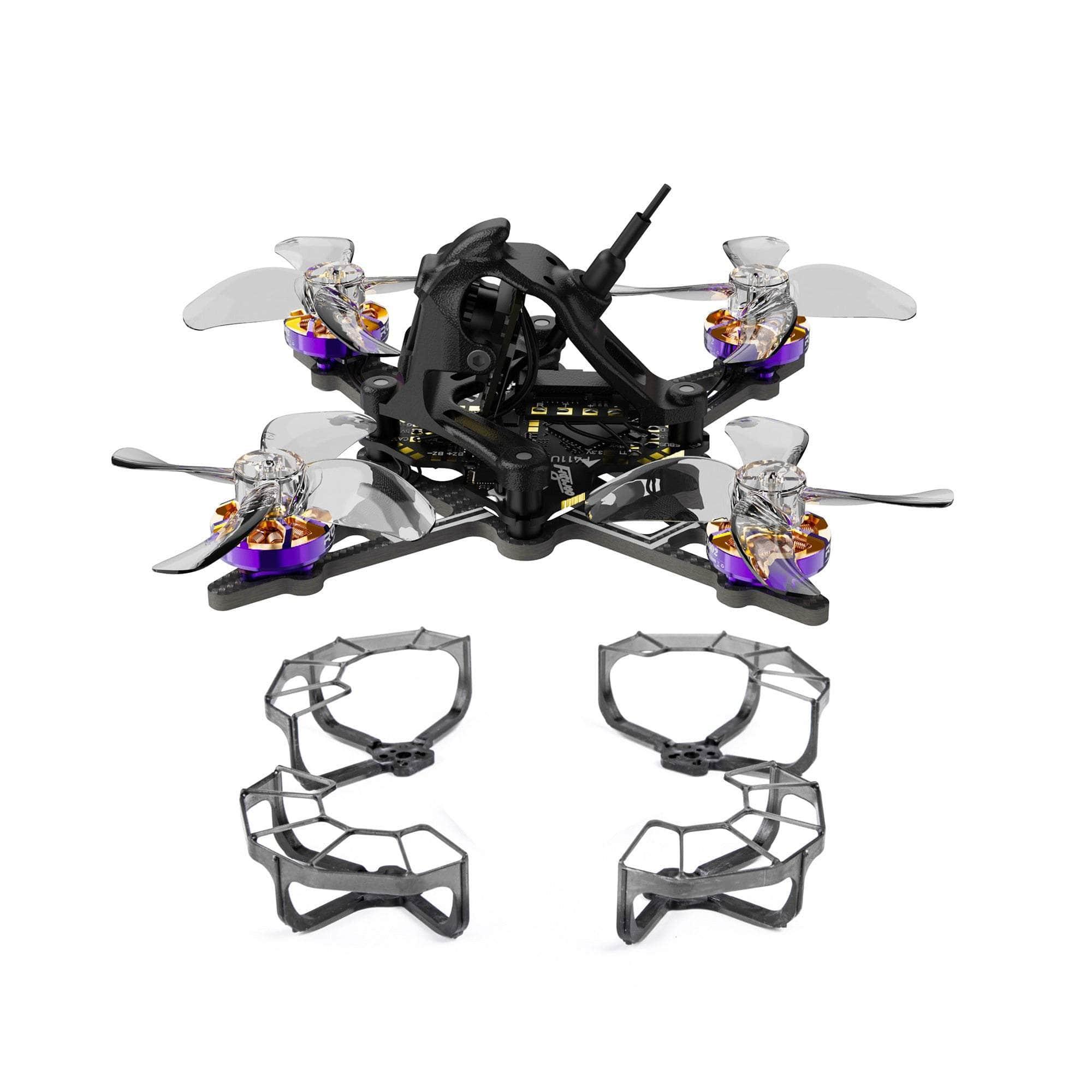

- 4x Prop guards
