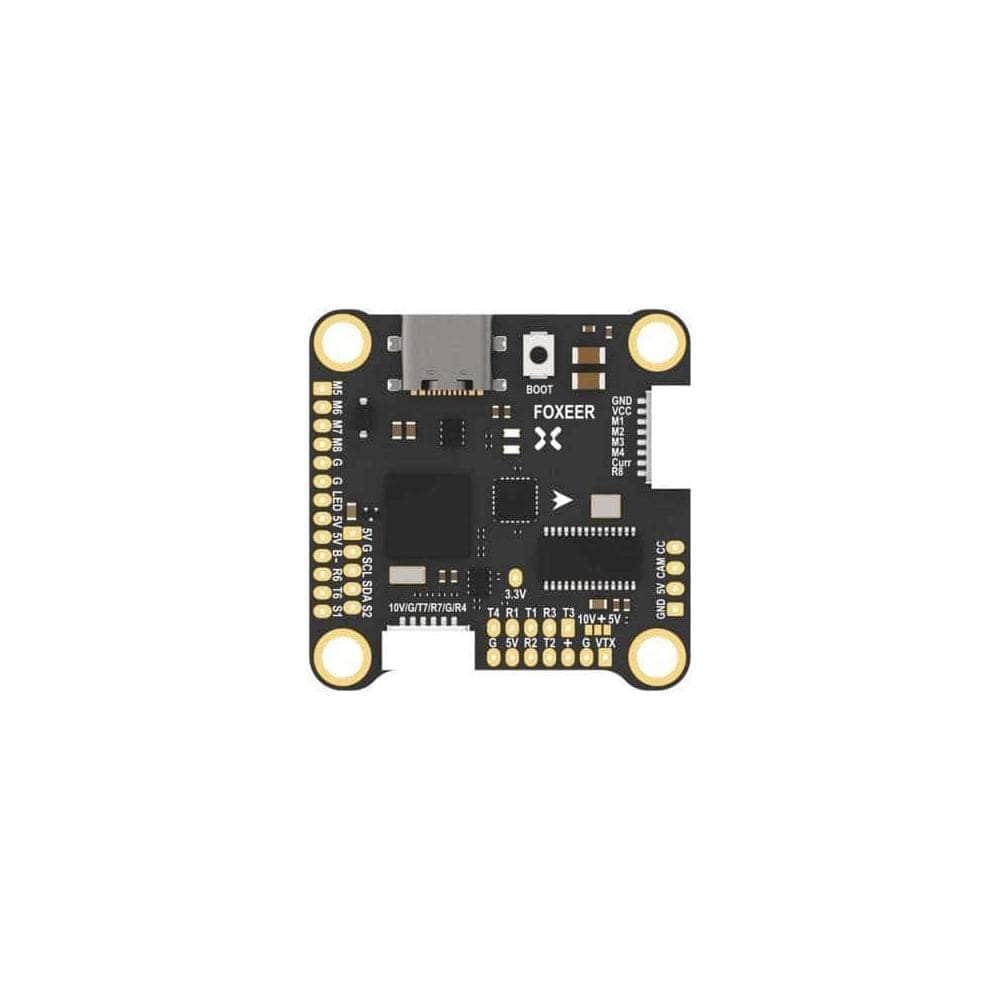

The Foxeer H7 is an advanced and reliable 4-8S flight controller with dual built-in BECs and a barometer. It features a fast and powerful MPU6000 processor to provide accurate and consistent performance with less vibration in flight. Enjoy worry-free flying with this top-class controller.

Check out our  as well as

Features

• 5V/10V Dual BEC
• MPU6000 32K Flash Rate
• Plug & Play with Foxeer cameras

Specifications

• Model: Foxeer H7
• CPU: FOXEERH743
• Gyro: MPU6000
• Barometer: DPS310
• Power Supply: 4-8S Lipo
• BEC Output: 3.3V/0.5A;DC5V/2A;DC10V/2A
• OSD: BF OSD
• Black Box: 16M Flash Memory
• UART: 6 Sets+Rx8
• ESC Telemetry: RX8
• Buzzer: Yes
• Connector: DJI/HDZero
• Smart Audio: Yes
• LED: 1 Set 2812 LED
• USB: Type-C
• Servo: S1,S2
• X8: Supported
• Firmware(BetaFlight): FOXEERH743
• Size: 37X37mm
• Mounting Hole: 30.5 x 30.5mm, Φ4mm
• Weight(g): 7.8g
• Working Temperature: -20℃ ~ +55℃
• Working Humidity: 2095%

• Storage Temperature: -20℃ ~ +70℃

X8 Setup CLI

Includes

• 1x Foxeer H743 X8 4-8S 30x30 Dual BEC Barometer Flight Controller - MPU6000
• 4x M3 Grommets
• 1x Cable
