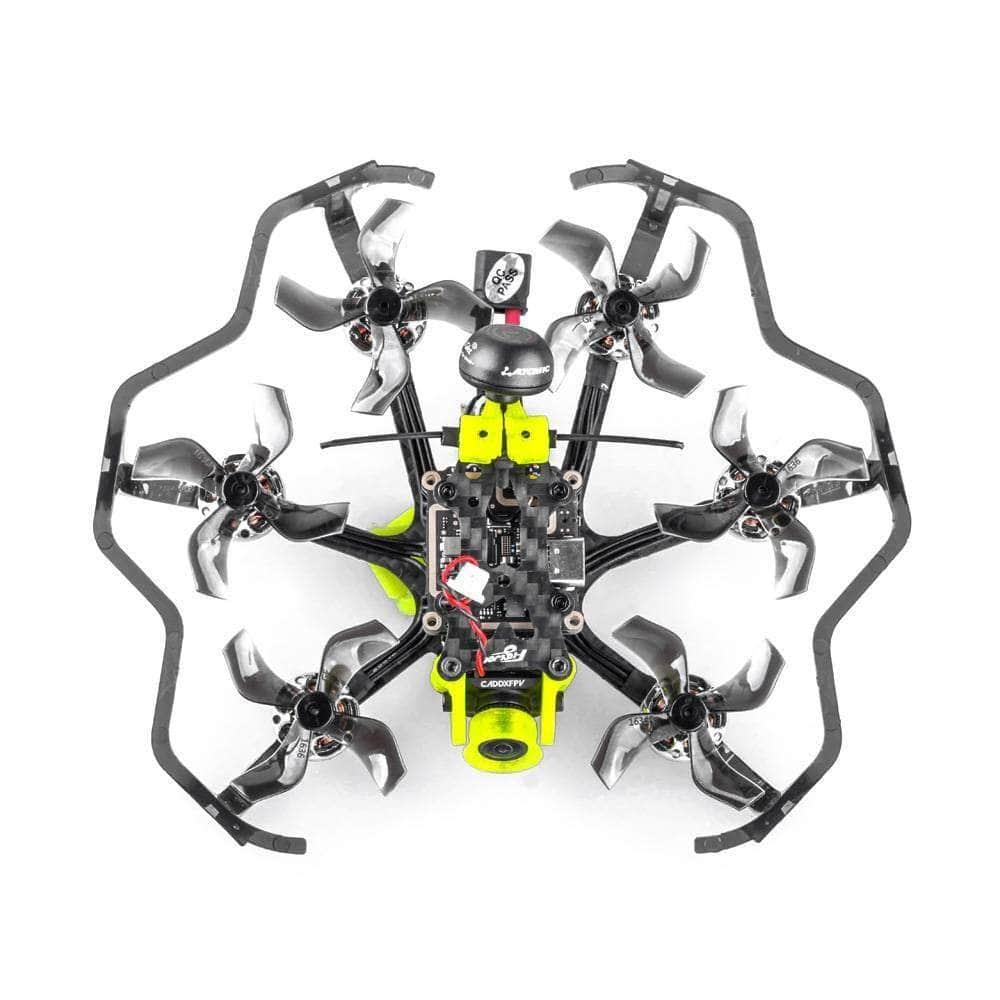

Flywoo's Firefly Hex Nano V1.2 is the smallest hexacopter ever designed by Flywoo, weighing in at 74g. It powerfully and stably carries Insta 360go and SMO 4K cameras. The Firefly hex nano is small, flexible, stable, and is full of power and offers unmatched control.
Check out our other , as well as other great products from !
Feature
- Hexacopter
- HD system
- Naked Vista
- Weighing only 74 grams
- Built in SMO Power Cable
- Prebuilt and tested
Specifications
Weight: 74g
Wheelbase: 80mm
FC & ESC:No.C203GOKU HEX F4 16x16 STACK - ( FC+13A ESC ) ( MPU6000)
Frame: Firefly Baby Quad Frame (HD Verison)
Motors: Nin V2 1203Pro 5500Kv
Props: Gemfan 1636 40mm-4 V2.0
HD digital camera & VTX: Naked RunCam Link & RunCam Wasp
Antenna: Atomic 5.8GHz Antenna Length 30mm (LHCP)
Battery (Recommended): 4S 450mAh / 4S 300mAh battery (Not including)
GOKU HEX GN405 Nano16X16 FC
- MCU: STM32F405 BGA
- IMU: ICM42688P
- Barometer: DPS310
- input voltage 2-6S
- Onboard LEDWS2812x4
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
- PPM and PWM receivers are not supported.
- Onboard 16Mbytes for Blackbox logging
- 5V Power Out: 2.0A max
- 3.3V Power Out: 0.5A max
- Dimensions: 22x22mm
- Mounting Holes: 16x16mm
- Weight: 2.3g
- Firmware : FLYWOOF405NANO
BS13A BLheli_S 2-4S 4in1
- lBS20/35A BLheli_S 2-6S 4in1
- Weight: 2.5g
- Mounting Hole: 16x16mm (M3)
- Support Oneshot, Multishot,
- DShot150/300/600
Nin V2 Motor
- Stator Size: 1203
- Motor Bolt Pattern: 9x9mm
- KV: 5500
Wasp Nano HD Camera
- Dimensions: L18mmxW14mmxH18mm
- LENS: FOV D:160° H:127° V:92°
- Resolution: 720P@120fps(4:3)
- Net Weight: 6g(With Cable)
- Shutter: Rolling Shutter
- Coaxial Cable: 80 mm
- Image Sensor: 1/3"
Naked Link Air Unit
- Input Voltage: 7.4-26.4V@ 4-9W
- Operating Frequency: 5.725-5.850 GHz
- Transmitter Power: (EIRP) FCC/SRRC: <30 dBm; CE: <14 dBm
- Min. Latency (end-to-end): 1280 x 720 60fps: 32 ms
- Max. Transmission Distance: FCC/SRRC: 4 km; CE: 0.7 km;
- I/O Interface: Type-C, IPEX, 3-in-1 port,
- Supported Flight Control System: BetaFlight
- Operating Temperature Range: 0° to 40° C (32° to 104° F)
Includes
- 1x Flywoo BNF Firefly Hex Nano V1.2 1.6" HD 4S Micro Quad w/ Naked RunCam Link & RunCam Wasp - Choose Receiver
- 1x Accessories (props, prop guard, RunCam link shell, battery straps, hardware, ect)
