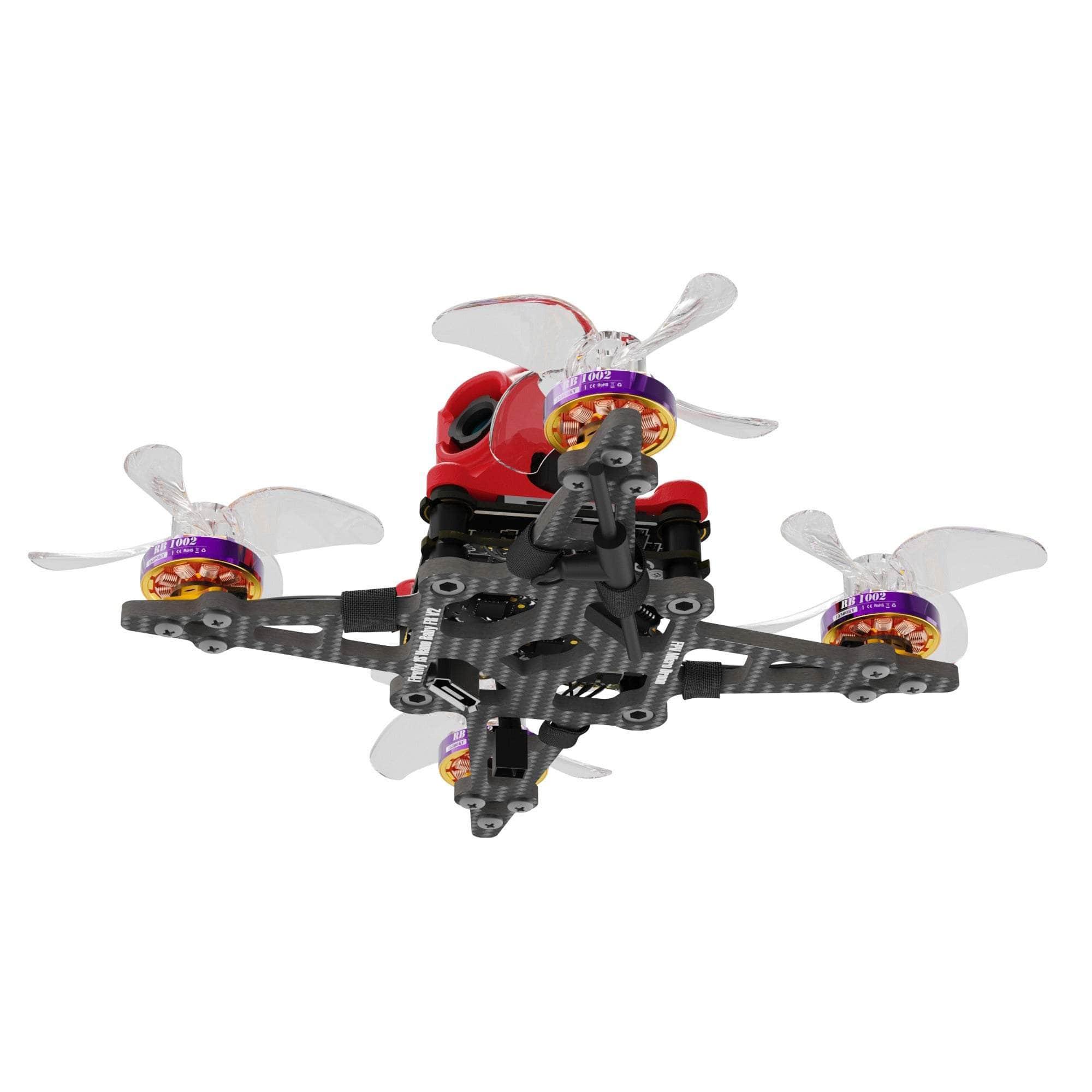

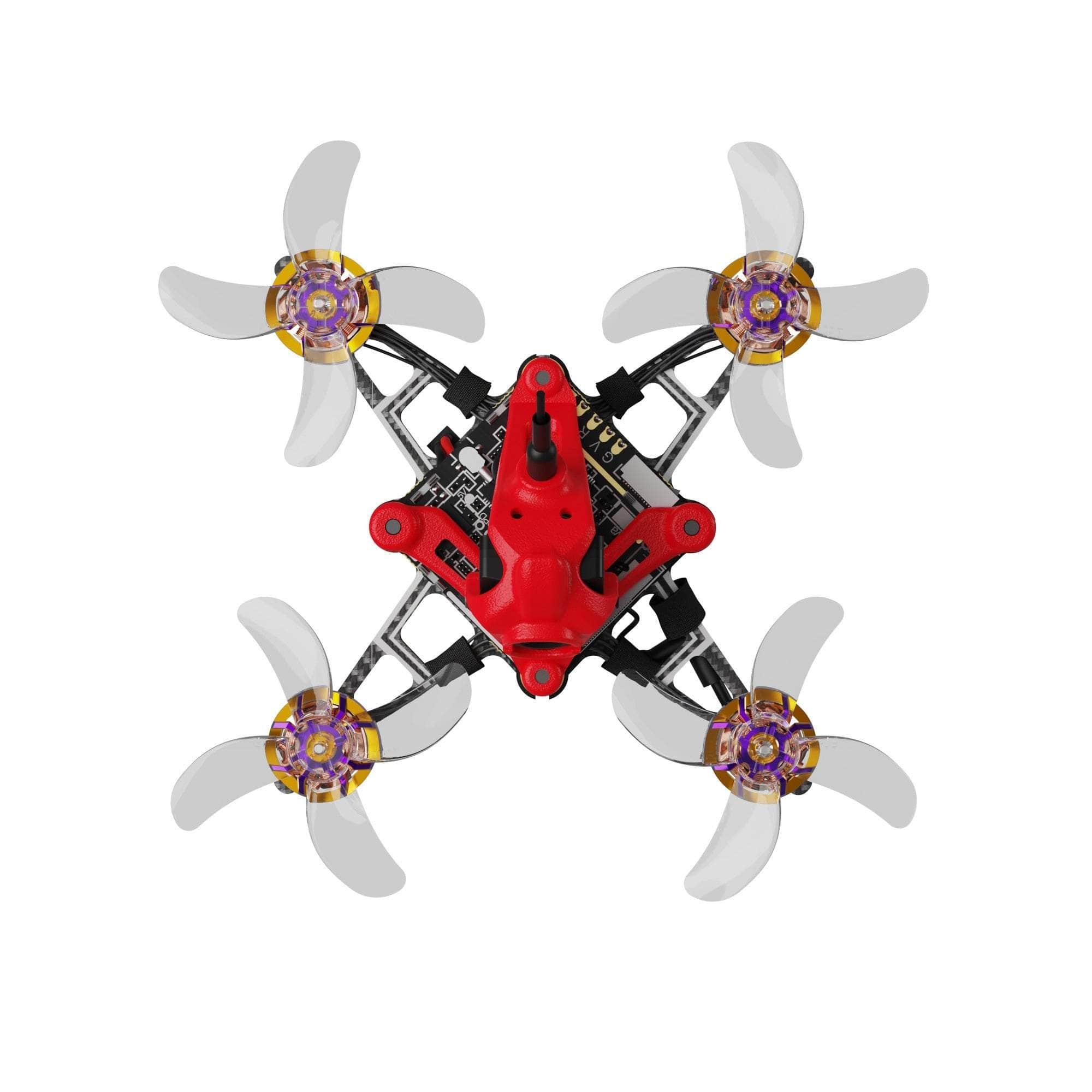

The Firefly 1S Nano Baby V2 is a micro-drone with improved flight time, power and design compared to its predecessor. Power has increased by 30%, with flexible flight, exceptional maneuverability, and higher speeds. A new canopy for camera protection and a bottom plate for sturdiness are integrated. Additionally, this model includes the GOKU F411 ELRS 1S AIO V2 with ELRS 2.4G receiver (UART 2) for a lightweight design with optimal performance. This version utilizes the elite capabilities of the HDZero HD digital VTX system. The HDZero Nano Lite Camera is a revolutionary product designed for lightweight drones, weighing only 1.5g and combined with the new Whoop Lite VTX at 4.5g. Supporting 1-3S power input, it can record in 720P/60FPS with ultra-low latency of less than 19ms and features OSD function configuration through Betaflight Configurator.
Check out our other , as well as other great products from !
Features:
- Redesigned canopy with enhanced aesthetics and reinforced camera protection.
- The bottom plate is thicker and has extended motor protection corners, resulting in a more stable and durable quadcopter.
- Equipped with ROBO 1002 23,500KV motor and 1609 4-bladed 40mm propellers, delivers a 30% increase in power, flexible flight, and impressive speeds - perfect for racing competitions.
- The GOKU Versatile F411 ELRS 1S AIO V2 boasts an ELRS 2.4G receiver, expertly connected via UART 2 instead of SPI for superior performance.
- A30 plug supports a continuous current of 15A, providing greater power and longer flight times compared to the PH2.0 connector.
- New battery compartment design allows for easy replacement of batteries of different models.
Specifications
- Motor: ROBO 1002 23,500KV
- Electronic: GOKU Versatile F411 ELRS 1S 5A AIO V2.0
- Props: 1609 - 4 blade 40mm 1.5mm Shaft
- HD Digital VTX System: HDZero Whoop Lite Bundle
- Receiver: ExpressLRS 2.4GHz
- Weight: 31g
- Flight Time: Explorer 1S 450mAh HV V2: 4m - : 6m (approximate)
- Speed: 70km/h (approximate)
GOKU Versatile F411 ELRS 1S 5A AIO V2.0
Flight Controller
- MCU: STM32F411CEU6
- GYRO: ICM42688
- UARTS: 1/2
- Soft serial port: 1
- I2C: SCL/SDA
- BEC: 5V
- Input Voltage: 1S (<4.35v)
- Firmware: FLYWOOF411_5IN1_AIO
- Mounting: 25x25mm, M2
Onboard 4in1 ESC
- MCU: EFM8BB21
- Power supply: 1S LiPo/LiPo HVCurrent: 5A
- Firmware: BLHeli_S
- Factory firmware: O_H_5_REV16_8.HEX
- Default protocol: DSHOT 150/300/600
- ELRS 2.4G RX (UART2)
- Configuration: 9N12P
- Stator Diameter: 10mm
- Stator Length: 2mm
- Shaft Diameter: 1.5mm
- Motor Dimension(Dia.xLen): Φ13.5x7.75mm
- Weight(g): 2.5(5cm wire)
- Idle current(5)@5V(A): 1.5
- No.of Cells(Lipo): 1S
- Max Continuous Power(W)3S: 52
- Internal Resistance: 75mΩ
- Max Current(3S): 14A
- Max Efficiency Current: (2-4A)>84%
HDZero Whoop LITE VTX
- Input Voltage: 1S-3S
- Output Power: 23mW, 200mW
- Operating Frequency: 5.727-5.850GHz
- Resolution: 1280x720@60fps
- Power Consumption: 5W @ 25mW, 5.8W @ 200mW
- MSP Canvas Mode: Yes
- Antenna Interface: U.FL (IPEX 1)
- Operating Temperature: 32-104°F
- Mounting Pattern: 25x25mm, M2
- Weight: 7g total package
HDZero Nano LITE Camera
- Size: 14x16x11mm
- Weight: 1.5gram
- Sensor: 0.5 inch, up to 10650 mV/Lux-sec
Ultra-high sensitive CMOS sensor - FOV:
- 4:3 D:130° H:108° V:84°
- 16:9 D:122° H:108° V:65°

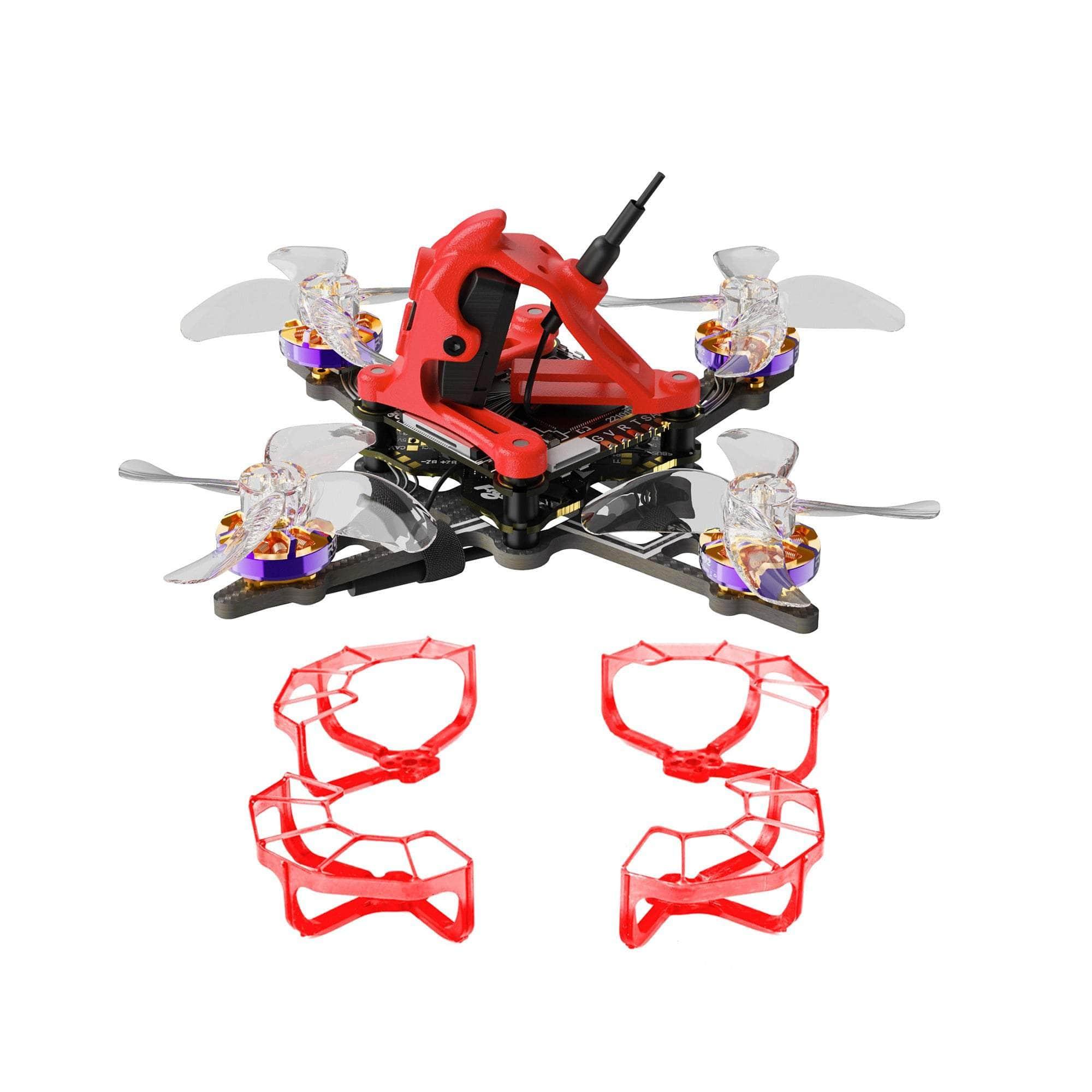

Includes
- 1x Flywoo BNF Firefly FR16 Nano Baby HD V2.0 1S 1.6" Micro Quad w/ HDZero Whoop Lite & Nano Lite Cam - ELRS 2.4 GHz
- 4x 1609 - 4 40mm 1.5mm shaft
- 2x TPU Battery Mount
- 1x Hardware Screw Set
- 4x Prop guards
