Celestron Advanced VX 8" EDGEHD Telescope
Celestron SKU: 12031 | Helix SKU: CT12031
Overview
- 8” (2032 mm) f/10 Edge HD includes StarBright XLT coatings for better light transmission
- Edge HD optical design fully corrects for coma and field curvature, delivering a truly flat field
- Built-in tube vents with integrated 60 micron mesh filters allow hot air to be released behind the primary mirror
- Fastar compatible tube comes with removable secondary mirror for fast f/2.8 imaging

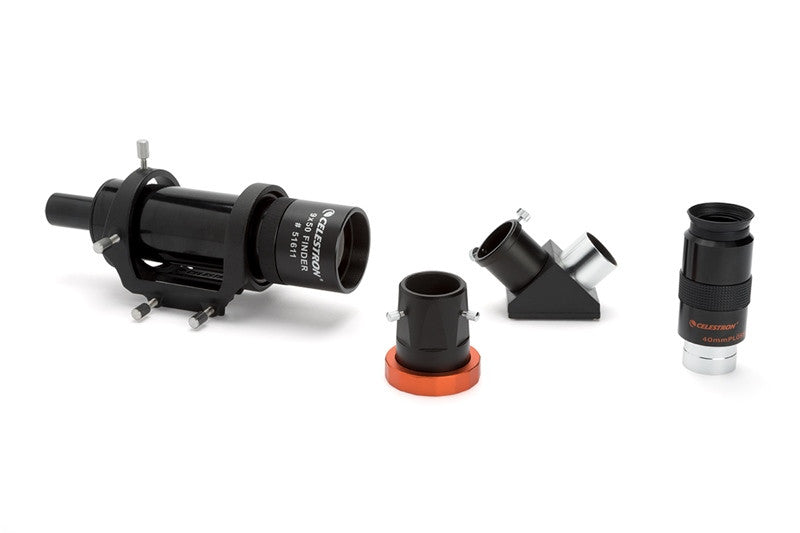

- 9x50 optical finderscope for locating alignment stars
- Integer gear ratios and permanently programmable Periodic Error Correction eliminates recurring track errors from the worm gear.
- Autoguider port for long exposure imaging
- New motors offer improved tracking performance & provide more power to overcome load imbalances
- Updated industrial design offers more rigidity, less flexure and improved aesthetics
- New design allows viewing or imaging across the meridian without interference from the motors housings
- Improved latitude range. Can be used between 7 – 77 degrees latitude.
- NexStar+ hand control offers multiple language programming (English, French, Italian, German, Spanish)
Description
Advanced VX 8” EdgeHD: truly the ultimate entry-level astroimaging package. This package combines the groundbreaking new Advanced VX mount with Celestron’s best optics, the EdgeHD optical system. This setup offers the astroimager maximum versatility – allowing up to 3 different f-stop configurations. Users can attach a camera to the rear of the telescope and shoot at f/10, or attach our 8-inch focal reducer and shoot at f/7. Additionally, EdgeHD is Fastar/Hyperstar compatible, giving imagers the option to shoot at ultra-fast f/2. No matter which configuration you choose, EdgeHD technology gives you pinpoint stars all the way to the edge of the CCD sensor.
With an 8-inch optical tube and our portable Advanced VX mount, this setup can be easily transported and assembled by one person. You’ll also have plenty of load capacity to attach your camera and other accessories. This setup is simple enough for a beginner to use, but can also provide years of enjoyment for sophisticated astroimagers.
ABOUT THE MOUNT
The new Advanced VX mount was specifically designed to provide optimum imaging performance for smaller telescopes. Now your smaller telescope can take advantage of All-Star Polar Alignment and autoguider support. You’ll be able to track through long exposures using permanently programmable periodic error correction. Image across the meridian without doing a meridian flip, so you can seamlessly image the best part of night sky. Advanced VX features significantly larger base castings than our previous design, improving stability under heavier loads. Improved motors offer more torque and can handle slight load imbalances with ease.
Specifications
| Optical Tube Info: | |
|---|---|
| Optical Design | EdgeHD |
| Aperture (mm) | 203 mm (7.99 in) |
| Telescope Type | Computerized (GOTO) |
| Focal Length | 2032 mm (80 in) |
| Focal Ratio | 10 |
| Focal Length of Eyepiece 1 (mm) | 40 mm (1.57 in) |
| Magnification of Eyepiece 1 | 51 x |
| Finderscope | 9x50 |
| Mount Info: | |
| Tripod Weight | 18 lbs (8.16 kg) |
| Tripod | Adjustable, Stainless Steel |
| Tripod Leg Diameter | 2" |
| Highest Useful Magnification | 480 x |
| Lowest Useful Magnification | 29 x |
| Limiting Stellar Magnitude | 14 |
| Resolution (Rayleigh) | 0.69 arc seconds |
| Resolution (Dawes) | 0.57 arc seconds |
| Light Gathering Power (Compared to human eye) | 841 x |
| Optical Tube Length | 17" in (432 mm) |
| Optical Tube Weight | 13 lbs (5.9 kg) |
| Weight of Counterweights | 1 x 12 lbs |
| Warranty | 2-year Telescope Warranty |
