DJI OSMO X3 4K Handheld Video Camera (CP.ZM.000160)

The Osmo system from DJI combines the Zenmuse X3 camera/gimbal with a detachable handle, bringing the benefits of stabilized 4K shooting to a handheld form factor. The camera features a 1/2.3" CMOS sensor that enables up to full DCI 4K (4096 x 2160) video recording at 24 or 25p as well as 12MP photo capability. Basic controls for the camera and gimbal are provided on the handle itself, including a joystick for manual pan and tilt. For monitoring and more advanced operation, there is a Wi-Fi link allowing Osmo to be tethered to a mobile device running the DJI GO iOS and Android app. An included smartphone holder effectively turns your smartphone into an on-board monitor. The Wi-Fi features a range of up to 85', so you can operate the camera and gimbal remotely as well.

PRODUCT HIGHLIGHTS

• 1/2.3" CMOS Sensor
• 4K (4096 x 2160) Video at 24 or 25p
• 120 fps Full HD Video for Slow-Motion
• 12MP JPEG or DNG RAW Still Photos
• Handle with Camera and Gimbal Controls
• Wi-Fi For Monitoring / Remote Operation

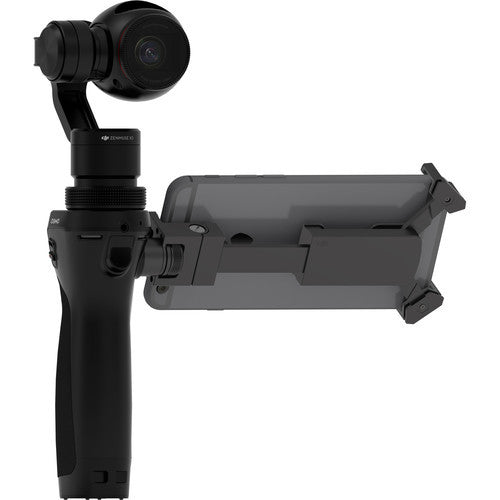

• Detachable Smartphone Holder
• Photos Bursts at up to 7 Shots
• Regular and Moving Time-Lapse Modes
• Auto and Selfie Panorama Modes

Model X3 / FC350H
Sensor Sony EXMOR R 1/2.3" CMOS
Resolution Total: 12.76 MP
Effective: 12.4 MP
Lens Field of View: 94°
Focal Length (35 mm Equivalent): 20 mm
Aperture: f/2.8
Design: 9 elements in 9 groups; aspherical lens element
Filters: Anti-distortion filter; UV filter
Video Recording 4K:
4096 x 2160 (DCI): 24p, 25p
3840 x 2160 (UHD): 24p, 25p, 30p

FHD (1080p):
1920 x 1080: 24p, 25p, 30p, 48p, 50p, 60p, 120p

HD (720p):
1280 x 720: 24p, 25p, 30p, 48p, 50p, 60p

Maximum Bitrate: 60 Mb/s
Audio Recording 2-channel; 48 kHz; AAC
Video Modes Auto
Slow Motion
Photography Modes Single shot
Burst: 3, 5, 7 frames per second (AEB: 3/5 frames per second; 0.7 EV bias)
Interval
Regular Time-Lapse
Moving Time-Lapse
Auto Panorama
Selfie Panorama
File Format Photo: JPEG, DNG
Video: MP4 in a .MOV wrapper (MPEG-4 AVC/H.264)
Recording Media Type: microSD/SDHC/SDXC up to 64 GB
Speed: Class 10 / UHS-1 or faster
Format: FAT32/exFAT
Gimbal
Model Zenmuse X3
Number of Axes 3-axis
Control Accuracy ±0.03°
Maximum Controlled Rotation Speed 120° / second
Controlled Rotation Range Tilt: -35 to +135°
Pan: ±320°
Roll: ±30°
Mechanical Range Tilt: -90 to +150°
Pan: ±330°
Roll: -50 to +90°
Angular Vibration Range ±0.03°
Output Power Static: 9 W
In Motion: 11 W
Operational Current Static: 750 mA
In Motion: 900 mA
Mounting Detachable
Operating Temperature 32 to 104°F / 0 to 40°C
Handle
Dimensions 2.4 x 1.9 x 6.4" / 6.1 x 4.8 x 16.3 cm
Weight 7.1 oz / 201 g
Wi-Fi
Frequency 2.412 to 2.462 GHz
5.180 to 5.805 GHz
Range Up to 82' / 25 m line-of-sight
Transmit Power EIRP: 2.4G: 8 dBm; 5G: 12 dBm
Battery
Model HB01-522365
Chemistry Lithium-polymer (LiPo)
Capacity 980 mAh
10.8 Wh
Voltage 11.1 V
Charging Temperature 59 to 104°F / 15 to 40°C
Charger Model: SOY015A-1260120
Input: 100 to 240 V; 50/60 Hz
Output: 12.6 V; 1.2 A
Operating Temperature 14 to 122°F / -10 to 50°C
System Requirements - Mobile App
Operating System iOS
Android
Device Compatibility Included mobile device holder suitable for smartphones
General
Connectivity 1 x 3.5mm microphone input
1 x micro-USB for firmware updates
Packaging Info
Package Weight 2.7 lb
Box Dimensions (LxWxH) 12.3 x 6.1 x 3.5"
