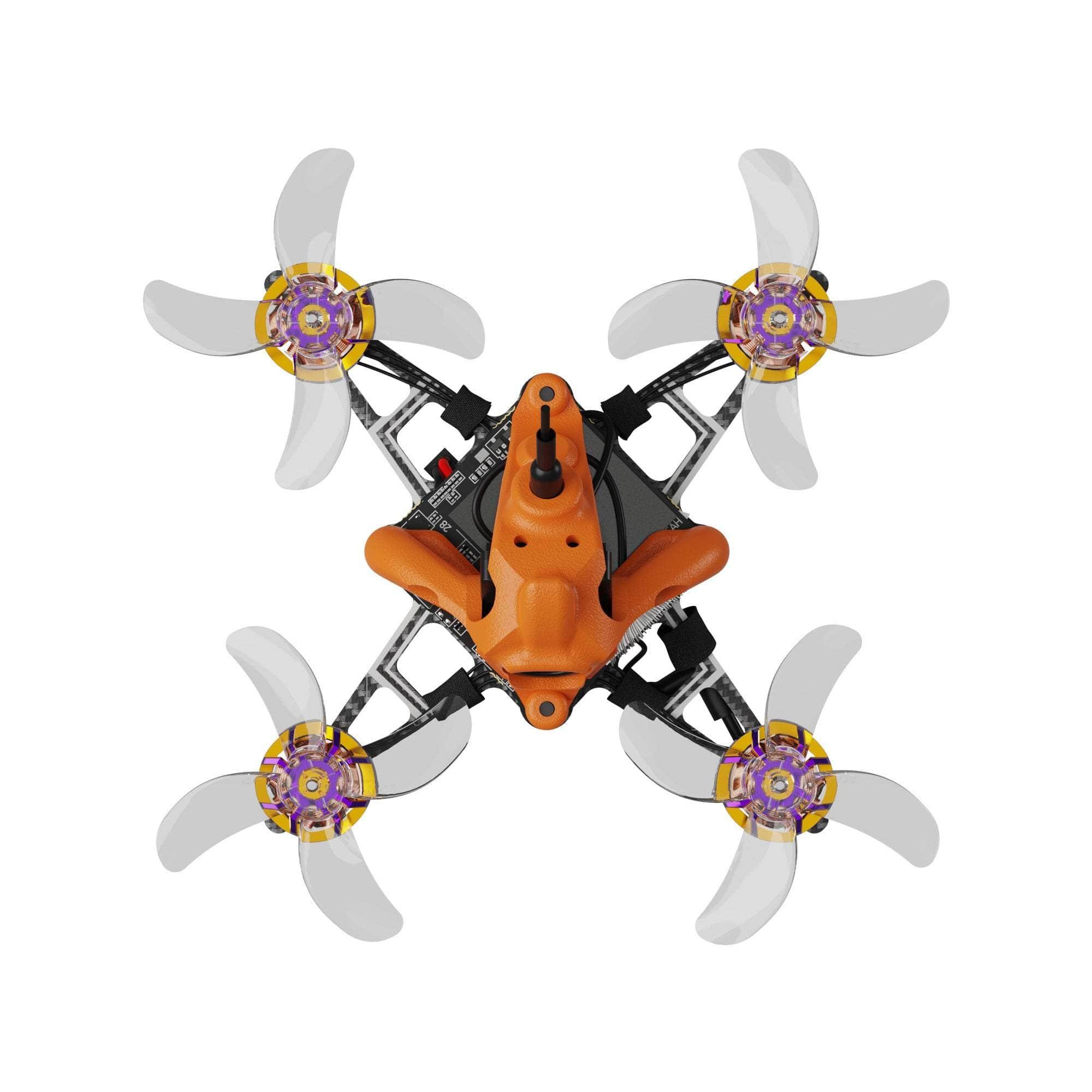

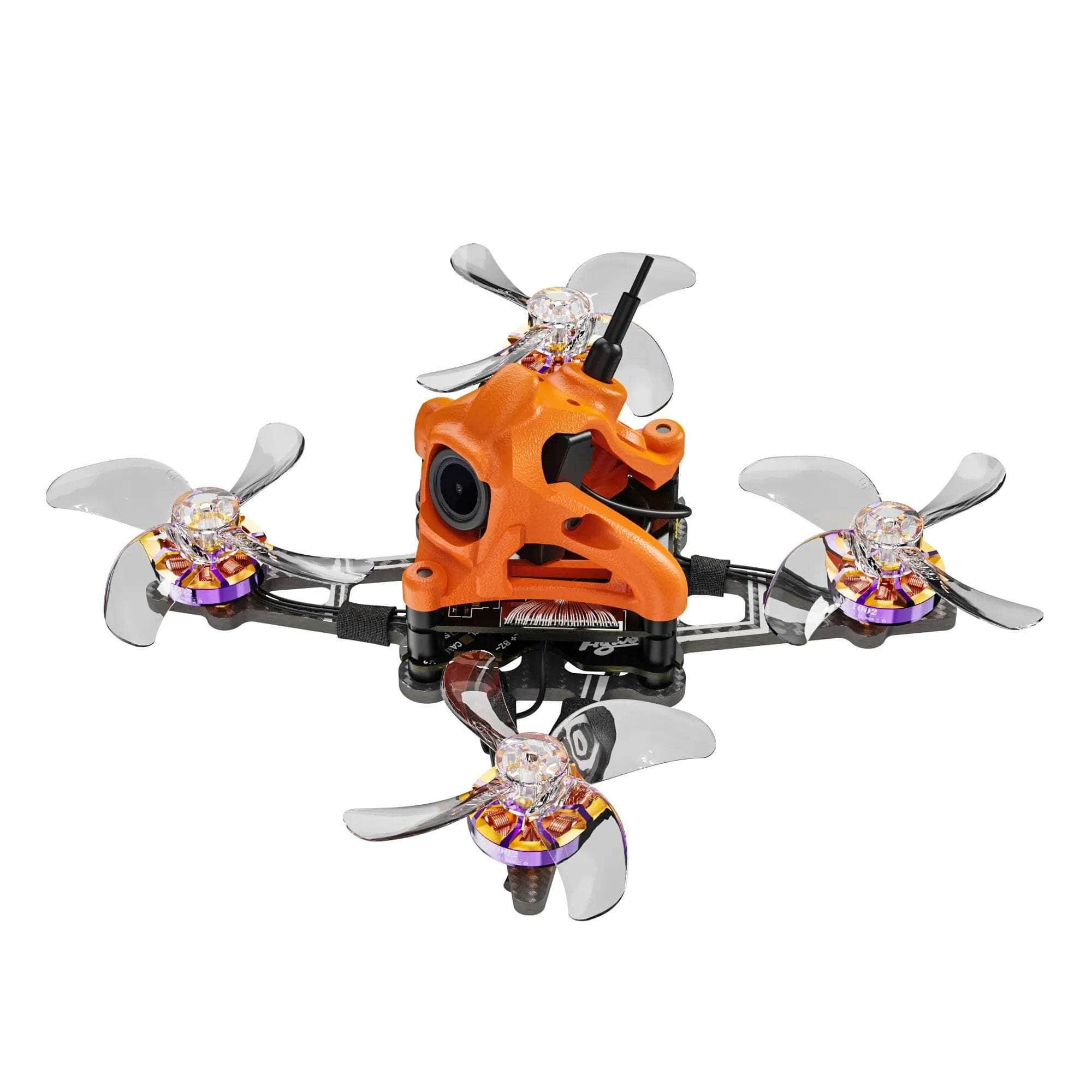

The FR16 Nano Baby V2 is an advanced microdrone with improved flight time, power, and appearance over its predecessor. It's 30% more powerful despite being heavier, with flexible flight, great maneuverability, and higher speeds. A newly designed canopy and plate provide crash resistance, and it's equipped with a ROBO 1002 23500KV motor. Plus, the GOKU Versatile F411 ELRS 1S AIO V2 + ELRS 2.4G receiver ensures a lightweight, top-performing design. This version utilizes the elite capabilities of the Walksnail HD digital VTX system. The Walksnail Avatar HD Mini 1S Lite is a lightweight VTX designed for 1S whoop drones, featuring H.265 high-efficiency video coding technology, 1080P/60FPS image recording with 22ms ultra-low latency, and built-in 8 GB storage for interference-free HD video recording and USB exporting.
Check out our other , as well as other great products from !
Features
- Redesigned canopy with enhanced aesthetics and reinforced camera protection.
- The bottom plate is thicker and has extended motor protection corners, resulting in a more stable and durable quadcopter.
- Equipped with ROBO 1002 23,500KV motor and 1609 4-bladed 40mm propellers, delivers a 30% increase in power, flexible flight, and impressive speeds perfect for racing competitions.
- The GOKU Versatile F411 ELRS 1S AIO V2 boasts an ELRS 2.4G receiver, expertly connected via UART 2 instead of SPI for superior performance.
- A30 plug supports a continuous current of 15A, providing greater power and longer flight times compared to the PH2.0 connector.
- New battery compartment design allows for easy replacement of batteries of different models.
Specification
- Motor: ROBO 1002 23500KV
- Electronic: GOKU Versatile F411 ELRS 1S 5A AIO V2.0
- Props: 1609 - 4 blade 40mm 1.5mm Shaft
- HD Digital VTX System: Walksnail Avatar HD Mini 1S Lite
- Receiver: ExpressLRS 2.4GHz
- Weight: 33g
- Flight Time: Explorer 1S 450mAh HV V2: 4m - : 6m (approximate)
- Speed: 70km/h (approximate)
GOKU Versatile F411 ELRS 1S 5A AIO V2.0
Flight Controller
- MCU: STM32F411CEU6
- GYRO: ICM42688
- UARTS: 1/2
- Soft serial port: 1
- I2C: SCL/SDA
- BEC: 5V
- Input Voltage: 1S (<4.35v)
- Firmware: FLYWOOF411_5IN1_AIO
- Mounting: 25x25mm, M2
Onboard 4in1 ESC
- MCU: EFM8BB21
- Power supply: 1S LiPo/LiPo HVCurrent: 5A
- Firmware: BLHeli_S
- Factory firmware: O_H_5_REV16_8.HEX
- Default protocol: DSHOT 150/300/600
- ELRS 2.4G RX (UART2)
- Configuration: 9N12P
- Stator Diameter: 10mm
- Stator Length: 2mm
- Shaft Diameter: 1.5mm
- Motor Dimension(Dia.xLen): Φ13.5x7.75mm
- Weight(g): 2.5(5cm wire)
- Idle current(5)@5V(A): 1.5
- No.of Cells(Lipo): 1S
- Max Continuous Power(W)3S: 52
- Internal Resistance: 75mΩ
- Max Current(3S): 14A
- Max Efficiency Current: (2-4A)>84%
Walksnail Avatar HD Mini 1S Lite
- Model: Avatar mini 1s module
- Communication Frequency: 5.725-5.850GHz
- Transmitter Power (EIRP): FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm;
- MIC:<25dBm
- I/O Interface: JST1.0x6(Power in)JST1.0x4(USB)
- Mounting Holes: 25.5x25.5mm
- Dimensions: 30x30x6.5mm
- Storage: 8G
- Recording: 1080p/720p
- Weight: 5.1g
- Operating Temperature: -20-40℃
- Channels: 8
- Wide Power Input: 3.1V-5V
- Supported FC System: Betaflight
- OSD: Canvas mode
- Bitrate: 25mbps, 50mbps
- Latency Average delay: 22ms
- Antenna: IPEX
Avatar lite camera
- Model: Avatar lite camera
- Image Sensor: 1/2.7”1nch
- Resolution: 1080P/60fps,720P/120fps,720P/60fps
- Ratio: 16/9 4/3
- Lens:2.1mm
- FOV: 170°
- Aperture: F2.0
- Shutter Rolling: Rolling shutter
- Min.Illumination: 0.001Lux
- Weight: 1.8g
- Dimensions: 14x14x16mm
Includes
- 1x Flywoo BNF Firefly FR16 Nano Baby HD V2.0 1S 1.6" Micro Quad w/ Avatar Nano Cam - ELRS 2.4 GHz
- 4x 1609 - 4 40mm 1.5mm shaft
- 2x TPU Battery Mount
- 1x Hardware Screw Set
- 4x Prop guards
