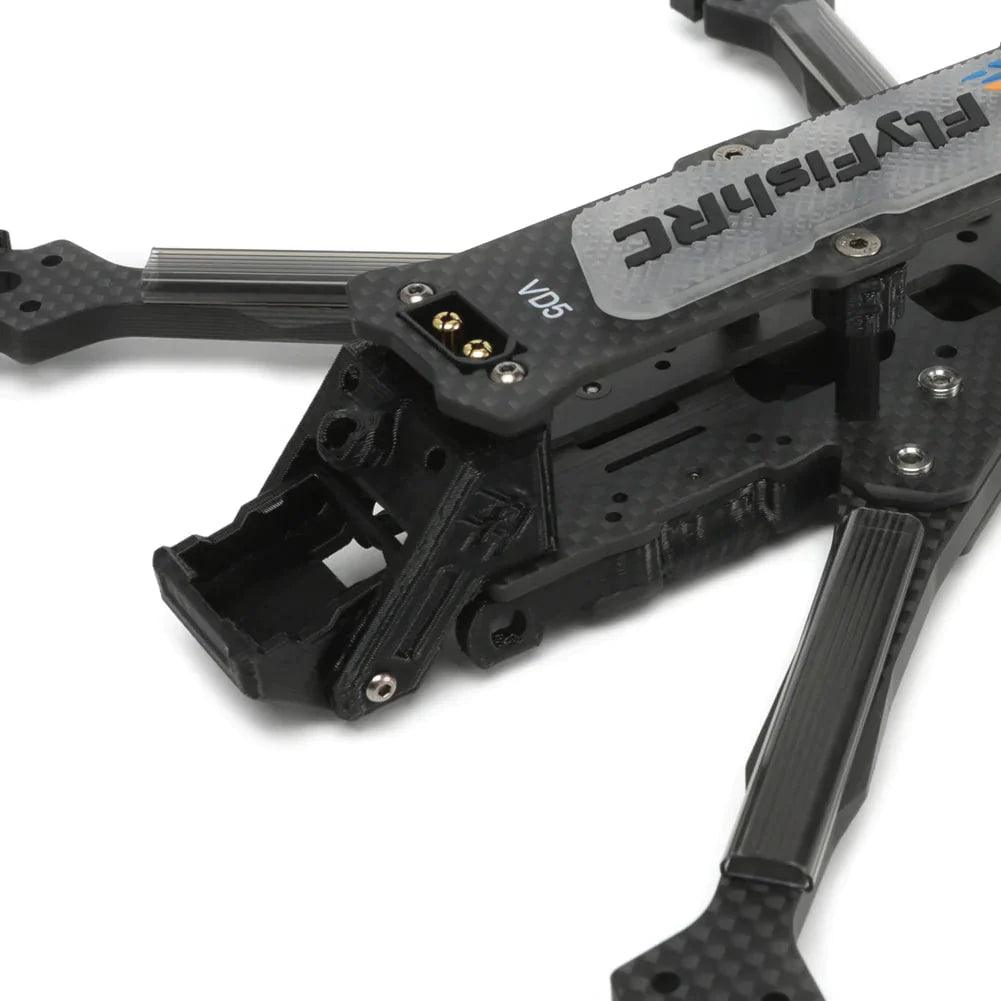

The FlyFishRC Volador II VD5 5" LR O3 Deadcat Frame Kit is made from high-end T700 carbon fiber and features a tight structure design to minimize resonance. It comes with innovative anti-slip battery pads, new motor wire protection tubes, and 12.9-grade strength hardware to ensure strength and reliability. This quad features 20x20mm and 30.5x30.5mm stack mounting holes, plus a 20x20mm and 25x25mm VTX mounting for superior convenience.

The Volador II VD5 is built as a deadcat-style configuration with no props in view, which is perfect for putting the O3 Air Unit in. This frame is compatible with various analog and HD systems on the market, and the independently detachable arm and tight-fitting structure design minimize frame resonance. The high-quality TPU parts are cleverly designed for a more integrated and neat installation.

The frame comes with all the accessories needed for analog and HD builds and is equipped with hardware with Loctite thread-locking agent for additional reliability. The tight structure design fully minimizes resonance.

Check out our other  as well as the rest of our  selection!

Make sure to check out our other !

Features

• High-end T700 carbon fiber

• Tight structure design minimizes resonance

• The new CNC aluminum camera plates effectively protect the camera

• The silicone shock-absorbers for the O3 AU eliminate jello

• Integrated XT60 connector for safety and reliability

• High-quality TPU parts

• Innovative anti-slip battery pads

• New motor wire protection tubes

• Compatible with both 19/20mm cameras

• Equipped with all accessories needed for analog and HD builds

• 12.9-grade strength hardware with Loctite threadlocker pre-applied

• High electronics compatibility
• High-Quality Carbon

V1 to V2 notable differences

• The frame is now significantly lighter.

• The new CNC side plate is lighter and perfectly fits the DJI O3 AU camera.

• The new battery anti-slip pad is more “sticky” and has better adhesion.

• Added keystone to even further reduce arm vibration.

• Added bottom screw gasket.

• Added motor wire protection tubes.

• The four middle screws on the top plate are now countersunk and sit flush, to
• eliminate possible battery damage during crashes.The new TPU arm protectors are now lighter and allow for easier disassembly.
• All models now come with two types of TPU antenna mount (with or without GPS mount).
• The thickness of the bottom and middle plates has been adjusted to 2.5mm.

• The connection structure between the arm and the clamp plate is slightly adjustedto distribute stress better.
• XT60 plug cutout on the top plate is now symmetrical, allowing installation of the XT60 in both orientations.

Specifications

• Arm Thickness: 6mm

• Top plate thickness: 2.5mm

• Middle plate thickness: 2.5mm

• Bottom plate thickness: 2.5mm

• Keystone thickness: 5mm

• Side plate thickness: 2mm

• CNC Side plate thickness: 5mm

• Propeller size: 5~5.1 inch

• Material: T700 carbon plate

• FPV cam spacing: 19mm/20mm

• Weight: 186.4g(with TPU parts)

• Color: Black/Tropical Mix (Optional)

• Total Dimensions: 190mmx136mm
• Wheelbase:225mm

• Stack mounting holes: 20mmx20mm/30.5mmx30.5mm(M3)

• VTX mounting holes: 20mmx20mm/25.5mmx25.5mm(M2)



Includes

• 1x FlyFishRC Volador II VD5 5" LR O3 Deadcat Frame Kit - Black
• 1x User Manual
